ADAR2004

4-Channel Rx Mixer

Analog Devices

ADAR2004 Features

* Quad LNA, mixer, IF VGA 4× LO multiplier with programmable harmonic filter RF input frequency range: 10 GHz to 40 GHz IF output frequency range: 0 MHz to 800 MHz LO input frequency range: 2.4 GHz to 10.1 GHz Gain range: 21 dB to 41 dB Input P1dB:

* 20 dBm typical (at minimum gain) Noise figur

ADAR2004 General Description

The ADAR2004 is a 4-channel receiver IC that is optimized for millimeter wave body scanning applications. Accepting differential input signals from 10 GHz to 40 GHz, the ADAR2004 provides a low intermediate frequency (IF) output up to 800 MHz. Each receive channel also has independent gain control. .

ADAR2004 Datasheet (750.88 KB)

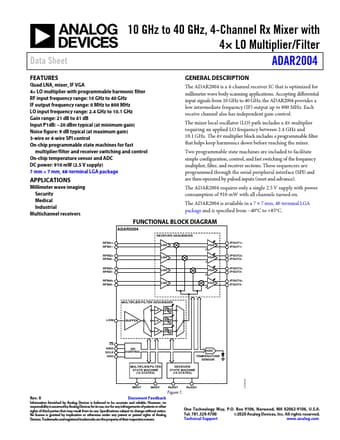

ADAR2004 Datasheet Preview — Preview of ADAR2004 PDF

Datasheet Details

Part number:

ADAR2004

Manufacturer:

Analog Devices ↗

File Size:

750.88 KB

Description:

4-channel rx mixer.
