ADAR5001

2-Way RF Splitter Combiner

Analog Devices

ADAR5001 Features

* 2-way RF splitter combiner

* Frequency range: 10 GHz to 40 GHz

* Insertion loss (excess of 3 dB):

* 1 dB from 10 GHz to 18 GHz

* 1.1 dB from 18 GHz to 27 GHz

* Return loss (Port S1):

* 15 dB from 10 GHz to 18 GHz

* 12 dB from 18 G

ADAR5001 General Description

The ADAR5001 is a 1-to-2 Wilkinson power splitter that is designed for space-constrained microwave signal distribution applications. Excess insertion loss ranges from

*1.0 dB (from 10 GHz to 18 GHz) and

*1.1 dB (from 18 GHz to 27 GHz). The two outputs are matched in both phase and am.

ADAR5001 Datasheet (336.42 KB)

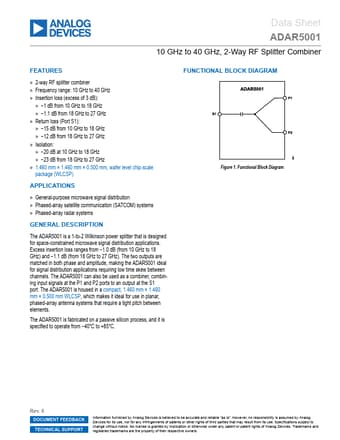

ADAR5001 Datasheet Preview — Preview of ADAR5001 PDF

Datasheet Details

Part number:

ADAR5001

Manufacturer:

Analog Devices ↗

File Size:

336.42 KB

Description:

2-way rf splitter combiner.
