ADAR5000

4-Way RF Splitter Combiner

Analog Devices

ADAR5000 Features

* 4-way RF splitter combiner

* Frequency range: 17 GHz to 32 GHz

* Insertion loss (excess of 6.0 dB):

* 1.7 dB at 22 GHz to 27 GHz

* Return loss (S1):

* 17 dB at 22 GHz to 27 GHz

* Isolation:

* 17 dB at 22 GHz to 27 GHz

* 2.460 mm x 2.460 mm x 0.500 mm, w

ADAR5000 General Description

The ADAR5000 is a 1-to-4 Wilkinson power splitter that is designed for space-sensitive microwave signal distribution applications. Excess insertion loss ranges from

*1.5 dB to

*2.5 dB from 17 GHz to 32 GHz. The four outputs are matched in both phase and amplitude, making the ADAR5000.

ADAR5000 Datasheet (323.47 KB)

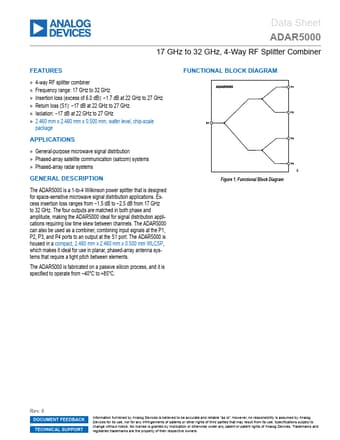

ADAR5000 Datasheet Preview — Preview of ADAR5000 PDF

Datasheet Details

Part number:

ADAR5000

Manufacturer:

Analog Devices ↗

File Size:

323.47 KB

Description:

4-way rf splitter combiner.
