HMC1122, Silicon Digital Attenuator

Data Sheet 0.1 GHz to 6.0 GHz, 0.5 dB LSB, 6-Bit, Silicon Digital Attenuator HMC1122 GND D0 GND D1 GND D2 GND D3 GND D4 GND D5 13719-001 .
The HMC1122 is a 6-bit digital attenuator operating from 0.

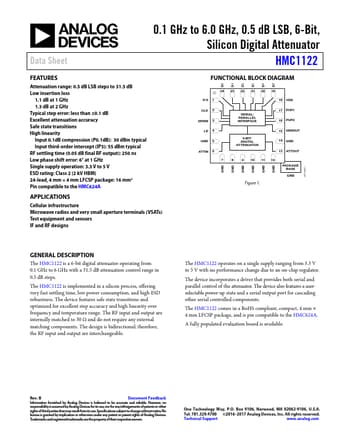

datasheet Preview Page 1 from Datasheet4u.com

HMC1122-AnalogDevices.pdf

HMC1122 Datasheet Preview — Preview of HMC1122 PDF

Datasheet Details

Part number:

HMC1122

Manufacturer:

Analog Devices ↗

File Size:

543.40 KB

Description:

Silicon Digital Attenuator

Features

* Attenuation range: 0.5 dB LSB steps to 31.5 dB Low insertion loss 1.1 dB at 1 GHz 1.3 dB at 2 GHz Typical step error: less than ±0.1 dB Excellent attenuation accuracy Safe state transitions High linearity Input 0.1dB compression (P0.1dB): 30 dBm typical Input third-order intercept (IP3): 55 dBm typi

Applications

* Cellular infrastructure Microwave radios and very small aperture terminals (VSATs) Test equipment and sensors IF and RF designs FUNCTIONAL BLOCK DIAGRAM 24 23 22 21 20 19 P/S 1 18 VDD CLK 2 SERIN 3 SERIAL/ PARALLEL INTERFACE 17 PUP1 16 PUP2 LE 4 GND 5 ATTIN 6 7 6-BIT/ DIGITAL ATTENUATOR
