HMC1126 Datasheet - Analog Devices

HMC1126 Power Amplifier

The HMC1126 is a gallium arsenide (GaAs), pseudomorphic high electron mobility transfer (pHEMT), monolithic microwave integrated circuit (MMIC), distributed power amplifier that operates from 2 GHz to 50 GHz. The HMC1126 provides 11 dB of gain, 28 dBm output IP3, and 17.5 dBm of output power at 1 dB.

HMC1126 Features

* Output power for 1 dB compression (P1dB): 17.5 dB typical Saturated output power (PSAT): 21 dBm typical Gain: 11 dB typical Output third-order intercept (IP3): 28 dBm typical Supply voltage: 5 V at 65 mA 50 Ω matched input/output Die size: 2.3 mm × 1.45 mm × 0.05 mm APPLICATIONS Test instrumentation

HMC1126-AnalogDevices.pdf

Preview of HMC1126 PDF

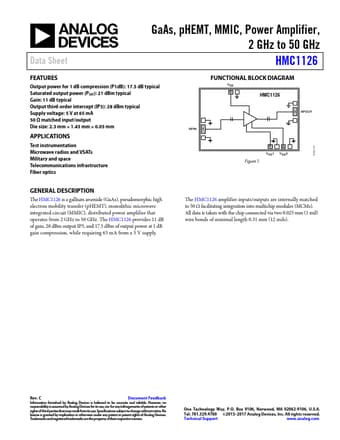

HMC1126 Datasheet Preview Page 2 HMC1126 Datasheet Preview Page 3

Datasheet Details

Part number:

HMC1126

Manufacturer:

Analog Devices ↗

File Size:

324.99 KB

Description:

Power amplifier.
