HMC1127 - Power Amplifier

Product Overview

Analog Devices

Datasheet Details

Part number	HMC1127
Manufacturer	Analog Devices
File Size	381.53 KB
Description	Power Amplifier
Datasheet	HMC1127 Datasheet

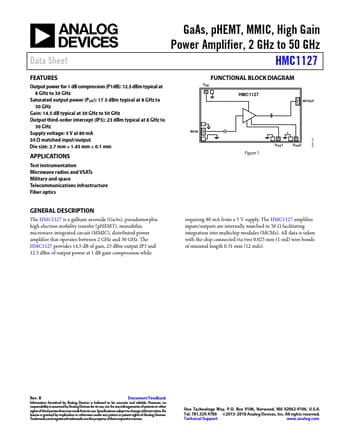

Additional preview pages of the HMC1127 datasheet.

Product details

Description

The HMC1127 is a gallium arsenide (GaAs), pseudomorphic high electron mobility transfer (pHEMT), monolithic microwave integrated circuit (MMIC), distributed power amplifier that operates between 2 GHz and 50 GHz.

Features

Output power for 1 dB compression (P1dB): 12.5 dBm typical at 8 GHz to 30 GHz Saturated output power (PSAT): 17.5 dBm typical at 8 GHz to 30 GHz Gain: 14.5 dB typical at 30 GHz to 50 GHz Output third-order intercept (IP3): 23 dBm typical at 8 GHz to 30 GHz Supply voltage: 5 V at 80 mA 50 Ω matched input/output Die size: 2.7 mm × 1.45 mm × 0.1 mm.
