HMC260A Datasheet, Mixer, Analog Devices

HMC260A Features

  • Mixer Downconverter Conversion loss 7.5 dB typical for 10 GHz to 18 GHz 8.5 dB typical for 18 GHz to 26 GHz LO to RF isolation: 40 dB typical LO to IF isolation 34 dB typical for 10 GHz to 18

PDF File Details

Part number:

HMC260A

Manufacturer:

Analog Devices ↗

File Size:

328.00kb

Download:

📄 Datasheet

Description:

Mmic fundamental mixer. The HMC260A is a general-purpose, double balanced mixer that can be used as an upconverter or downconverter

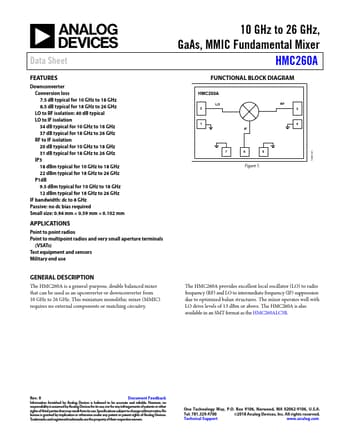

Datasheet Preview: HMC260A 📥 Download PDF (328.00kb)
Page 2 of HMC260A Page 3 of HMC260A

HMC260A Application

  • Applications Point to point radios Point to multipoint radios and very small aperture terminals (VSATs) Test equipment and sensors Military end use
