HMC260ALC3B Datasheet, Mixer, Analog Devices

HMC260ALC3B Features

  • Mixer Passive: No DC Bias Required Input IP3: +20 dBm LO/RF Isolation: 40 dB Wide IF Bandwidth: DC - 8 GHz 12 Lead Ceramic 3x3 mm SMT Package: 9mm2 General Description The HMC260ALC3B is a ge

PDF File Details

Part number:

HMC260ALC3B

Manufacturer:

Analog Devices ↗

File Size:

606.45kb

Download:

📄 Datasheet

Description:

Gaas mmic fundamental mixer. The HMC260ALC3B is a general purpose double balanced mixer in a leadless RoHS compliant SMT package that can be used as an upconverte

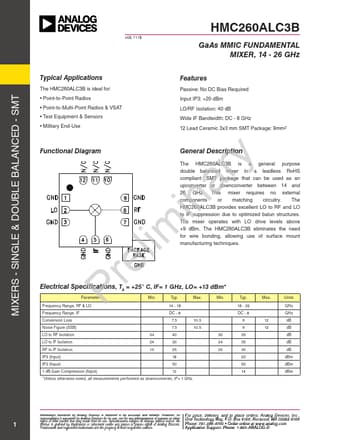

Datasheet Preview: HMC260ALC3B 📥 Download PDF (606.45kb)
Page 2 of HMC260ALC3B

HMC260ALC3B Application

  • Applications The HMC260ALC3B is ideal for:
  • Point-to-Point Radios
  • Point-to-Multi-Point Radios & VSAT
  • Test Equipment & S
