HMC264LC3B Datasheet - Analog Devices

HMC264LC3B GaAs MMIC SUB-HARMONIC SMT MIXER

The HMC264LC3B is a 21 - 31 GHz Sub-harmonically Pumped (x2) MMIC Mixer with an integrated LO amplifier in a leadless “Pb Free” SMT package. The 2LO to RF isolation is excellent at 30 dB, eliminating the need for additional filtering. The LO amplifier is a single bias (+3V to +4V) design with only -.

HMC264LC3B-AnalogDevices.pdf

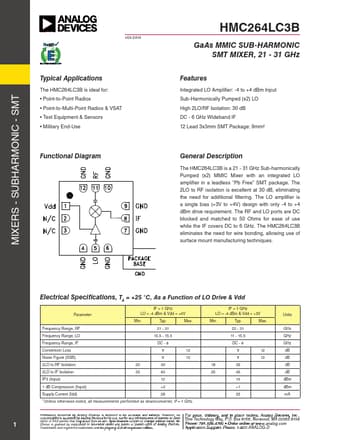

Preview of HMC264LC3B PDF
HMC264LC3B Datasheet Preview Page 2 HMC264LC3B Datasheet Preview Page 3

Datasheet Details

Part number:

HMC264LC3B

Manufacturer:

Analog Devices ↗

File Size:

397.98 KB

Description:

Gaas mmic sub-harmonic smt mixer.
