HMC263LP4E Datasheet, Amplifier, Analog Devices

HMC263LP4E Features

  • Amplifier Low Noise Figure: 2.2 dB High Gain: 20 dB Single Positive Supply: +3V or +5V DC Blocked RF I/Os No External Matching 24 Lead 4x4mm QFN Package: 16mm² General Description The HMC263LP4E

PDF File Details

Part number:

HMC263LP4E

Manufacturer:

Analog Devices ↗

File Size:

1.05MB

Download:

📄 Datasheet

Description:

Gaas mmic low noise amplifier. The HMC263LP4E is a GaAs MMIC Low Noise Amplifier (LNA) which covers the frequency range of 24 to 36 GHz and is housed in a leadless

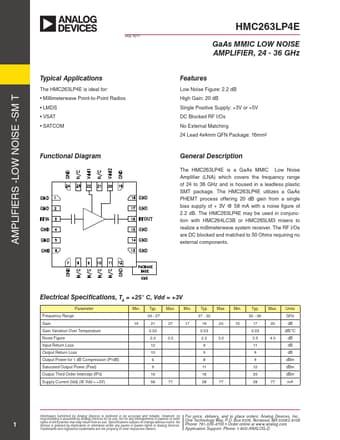

Datasheet Preview: HMC263LP4E 📥 Download PDF (1.05MB)
Page 2 of HMC263LP4E Page 3 of HMC263LP4E

HMC263LP4E Application

  • Applications The HMC263LP4E is ideal for:
  • Millimeterwave Point-to-Point Radios
  • LMDS
  • VSAT
  • SATCOM Functional D
