HMC264LM3 Datasheet, Mixer, Analog Devices

HMC264LM3 Features

• Mixer Integrated LO Amplifier: -4 to +4 dBm Input Sub-Harmonically Pumped (x2) LO High 2LO/RF Isolation: 30 dB DC - 6 GHz Wideband IF 12 Lead 3x3mm SMT Package: 9mm² General Description The H

PDF File Details

Part number:

HMC264LM3

Manufacturer:

Analog Devices ↗

File Size:

397.98kb

Download:

📄 Datasheet

Description:

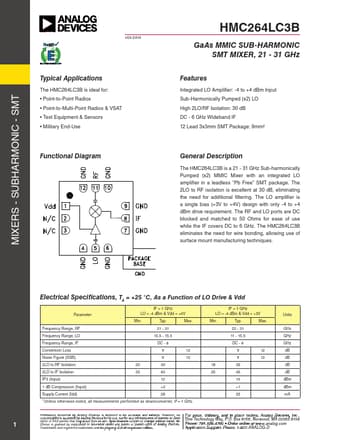

Gaas mmic sub-harmonic smt mixer. The HMC264LC3B is a 21 - 31 GHz Sub-harmonically Pumped (x2) MMIC Mixer with an integrated LO amplifier in a leadless “Pb Free” SMT p

HMC264LM3 Application

• Applications The HMC264LC3B is ideal for:
• Point-to-Point Radios
• Point-to-Multi-Point Radios & VSAT
• Test Equipment & Se
