HMC260LC3B Datasheet, Mixer, Analog Devices

HMC260LC3B Features

  • Mixer Passive: No DC Bias Required Input IP3: +20 dBm LO/RF Isolation: 40 dB Wide IF Bandwidth: DC - 8 GHz 12 Lead Ceramic 3x3 mm SMT Package: 9mm2 General Description The HMC260LC3B is a gen

PDF File Details

Part number:

HMC260LC3B

Manufacturer:

Analog Devices ↗

File Size:

307.72kb

Download:

📄 Datasheet

Description:

Gaas mmic fundamental mixer. The HMC260LC3B is a general purpose double balanced mixer in a leadless RoHS compliant SMT package that can be used as an upconverter

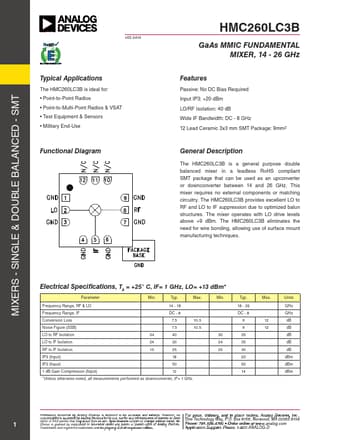

Datasheet Preview: HMC260LC3B 📥 Download PDF (307.72kb)
Page 2 of HMC260LC3B Page 3 of HMC260LC3B

HMC260LC3B Application

  • Applications The HMC260LC3B is ideal for:
  • Point-to-Point Radios
  • Point-to-Multi-Point Radios & VSAT
  • Test Equipment & Se
