SW06

Quad SPST JFET Analog Switch

SW06 Features

* Two Normally Open and Two Normally Closed SPST Switches with Disable Switches Can Be Easily Configured as a Dual SPDT or a DPDT Highly Resistant to Static Discharge Destruction Higher Resistance to Radiation than Analog Switches Designed with MOS Devices Guaranteed RON Matching: 10% max Guaranteed S

SW06 General Description

The SW06 is a four channel single-pole, single-throw analog switch that employs both bipolar and ion-implanted FET devices. The SW06 FET switches use bipolar digital logic inputs which are more resistant to static electricity than CMOS devices. Ruggedness and reliability are inherent in the SW06 de.

SW06 Datasheet (291.48 KB)

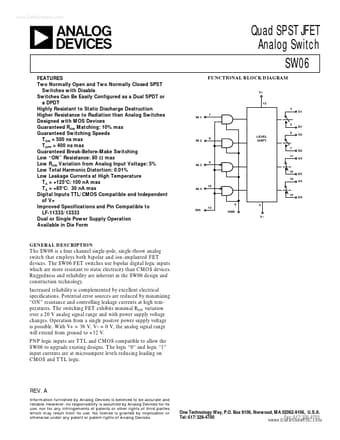

Preview of SW06 PDF

Datasheet Details

Part number:

SW06

Manufacturer:

Analog Devices ↗

File Size:

291.48 KB

Description:

Quad spst jfet analog switch.
