SW036R10E8S - N-channel Enhanced mode TO-220/TO-263 MOSFET

SW036R10E8S Description

SW036R10E8S N-channel Enhanced mode TO-220/TO-263 MOSFET .
1.

SW036R10E8S Features

* TO-220 TO-263
* High ruggedness
* Low RDS(ON) (Typ 3.8mΩ)@VGS=10V
* Low Gate Charge (Typ 85nC)
* Improved dv/dt Capability
* 100% Avalanche Tested

📥 Download Datasheet

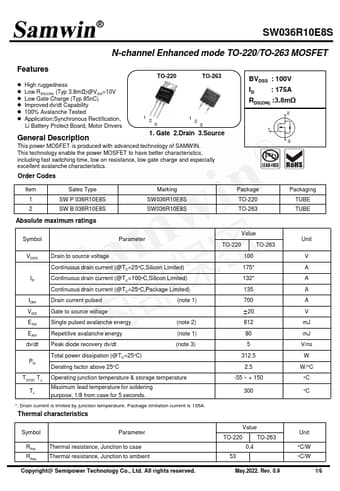

Preview of SW036R10E8S PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SW036R10E8S
Manufacturer
Samwin
File Size
538.81 KB
Datasheet
SW036R10E8S-Samwin.pdf
Description
N-channel Enhanced mode TO-220/TO-263 MOSFET
