SW038R10ES - N-channel MOSFET

SW038R10ES Description

SW038R10ES N-channel Enhanced mode TO-247 MOSFET .
This power MOSFET is produced with advanced technology of SAMWIN.

SW038R10ES Features

* TO-247
* High ruggedness
* Low RDS(ON) (Typ 3.6mΩ)@VGS=10V
* Low Gate Charge (Typ 132nC)
* Improved dv/dt Capability
* 100% Avalanche Tested

📥 Download Datasheet

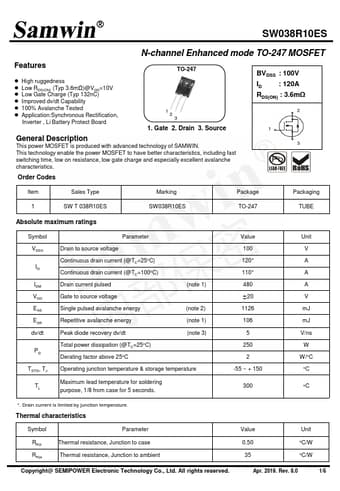

Preview of SW038R10ES PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SW038R10ES
Manufacturer
Samwin
File Size
677.47 KB
Datasheet
SW038R10ES-Samwin.pdf
Description
N-channel MOSFET
