SW065R68E7T

N-channel MOSFET

SW065R68E7T Features

* TO-252

* High ruggedness

* Low RDS(ON) (Typ 6.3mΩ)@VGS=10V

* Low Gate Charge (Typ 75nC)

* Improved dv/dt Capability

* 100% Avalanche Tested

* Application:Synchronous Rectification, Li Battery Protect Board, Inverter 12 3 1. Gate 2.Drain 3.Source General Description This p

SW065R68E7T General Description

This power MOSFET is produced with advanced technology of SAMWIN. This technology enable the power MOSFET to have better characteristics, including fast switching time, low on resistance, low gate charge and especially excellent avalanche characteristics. Order Codes Item Sales Type Marking 1 S.

SW065R68E7T Datasheet (683.48 KB)

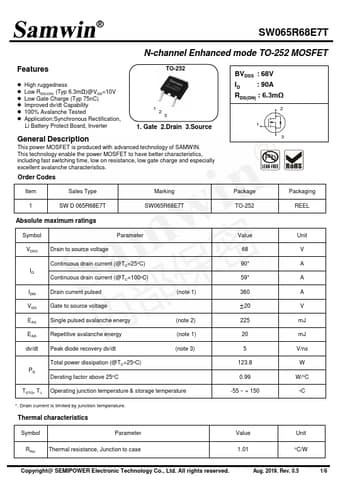

Preview of SW065R68E7T PDF

Datasheet Details

Part number:

SW065R68E7T

Manufacturer:

Samwin

File Size:

683.48 KB

Description:

N-channel mosfet.
