SW058R72E7T

N-channel MOSFET

SW058R72E7T Datasheet (823.03 KB)

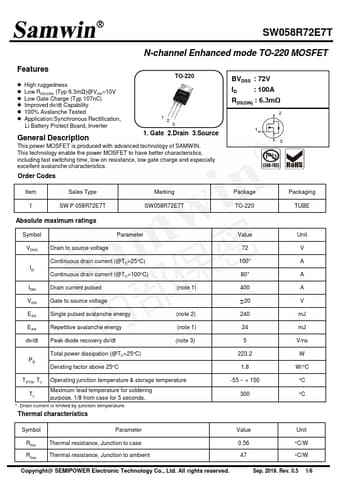

Preview of SW058R72E7T PDF Datasheet

Datasheet Details

Part number:

SW058R72E7T

Manufacturer:

Samwin

File Size:

823.03 KB

Description:

N-channel mosfet

SW058R72E7T Features

* TO-220

* High ruggedness

* Low RDS(ON) (Typ 6.3mΩ)@VGS=10V

* Low Gate Charge (Typ 107nC)

* Improved dv/dt Capability

* 100% Avalanche Tested

* Application:Synchronous Rectification, Li Battery Protect Board, Inverter 12 3 General Description 1. Gate 2.Drain 3.Source

SW058R72E7T General Description

1. Gate 2.Drain 3.Source This power MOSFET is produced with advanced technology of SAMWIN. This technology enable the power MOSFET to have better characteristics, including fast switching time, low on resistance, low gate charge and especially excellent avalanche characteristics. Order Codes .
