SW069R10VS N-Channel MOSFET

INCHANGE

SW069R10VS Description

isc N-Channel MOSFET Transistor INCHANGE Semiconductor SW069R10VS *.

SW069R10VS Features

* With TO-252(DPAK) packaging
* High speed switching
* Easy to use
* Low on resistance, low gate charge
* Excellent avalanche characteristics.
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

SW069R10VS Applications

* Power supply
* LED backlighting
* Motor control
* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 100 VGSS ID IDM Gate-Source Voltage Drain Current-Continuous Drain Current-Single Pulsed ±20 70 44 280 PD Total Di

📥 Download Datasheet

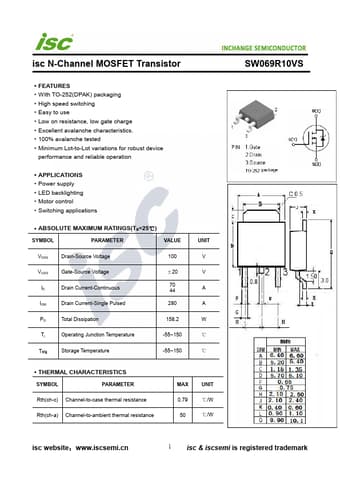

SW069R10VS Datasheet Preview — Preview of SW069R10VS PDF

Datasheet Details

Part number: SW069R10VS
Manufacturer: INCHANGE
File Size: 204.36 KB
Datasheet: SW069R10VS-INCHANGE.pdf
Description: N-Channel MOSFET
