9014 - Silicon NPN transistor

9014 Description

9014 Rev.E Mar.-2016 DATA SHEET / .
TO-92 NPN 。Silicon NPN transistor in a TO-92 Plastic Package.

9014 Applications

* 、。 Low frequency, low noise amplifier. / Equivalent Circuit / Pinning 123 PIN1：Collector PIN 2：Base PIN 3：Emitter / hFE Classifications & Marking hFE Classifications Symbol hFE Range A 60~150 B 100~300 C 200~600 D 400~1000 http://www. fsbrec. com 1/6 9014 Rev. E Mar. -2016 / Absolute

📥 Download Datasheet

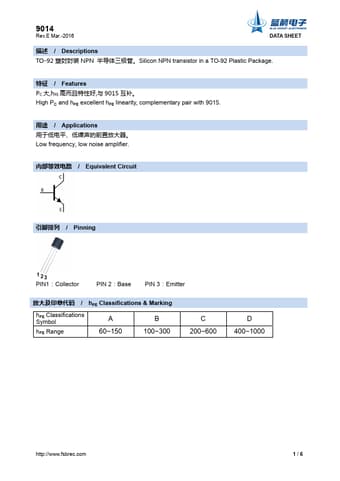

Preview of 9014 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
9014
Manufacturer
BLUE ROCKET ELECTRONICS
File Size
1.03 MB
Datasheet
9014-BLUEROCKETELECTRONICS.pdf
Description
Silicon NPN transistor
