PDB241-E - 24 mm Rotary Potentiometer

Product Overview

BOURNS

Part number	PDB241-E
Manufacturer	BOURNS
File Size	148.79 KB
Description	24 mm Rotary Potentiometer
Datasheet	PDB241-E Datasheet
Note	This datasheet PDF includes multiple part numbers: PDB241-E, PDB241-D. Please refer to the document for exact specifications by model.

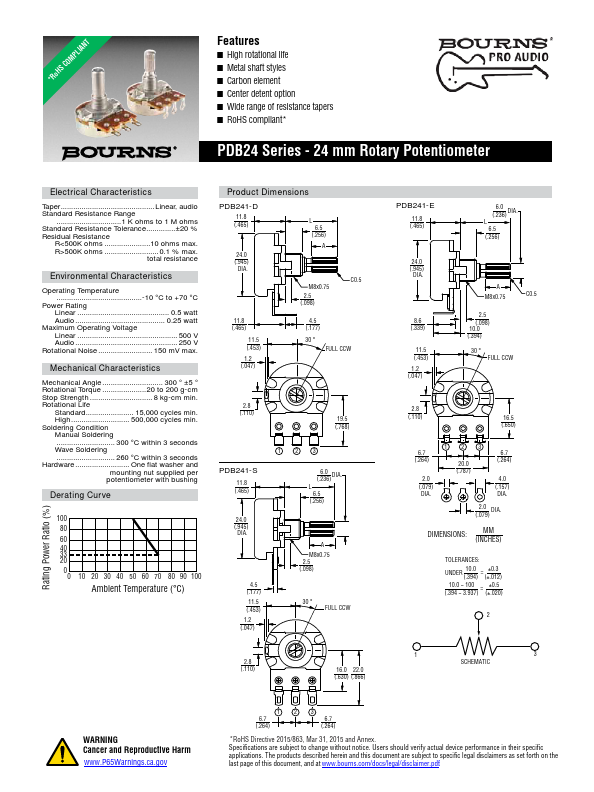

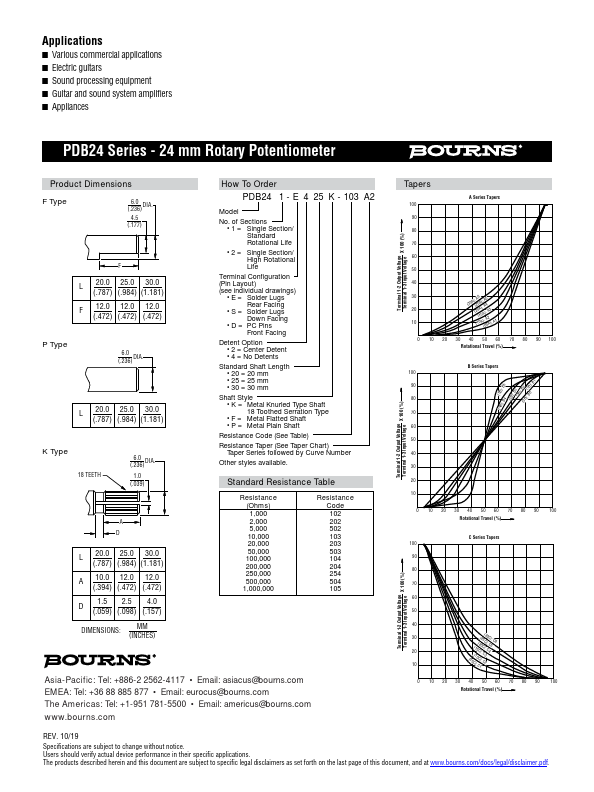

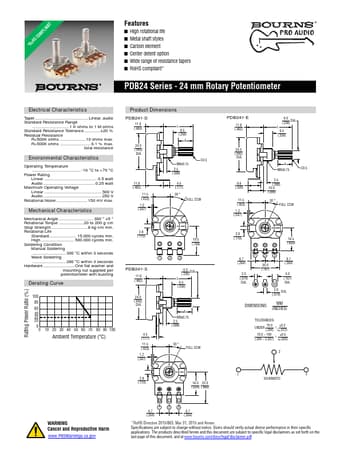

Additional preview pages of the PDB241-E datasheet.

High rotational life.
Metal shaft styles.
Carbon element.
Center detent option.
Wide range of resistance tapers.
RoHS compliant.
PDB24 Series - 24 mm Rotary Potentiometer Electrical Characteristics Taper Linear, audio Standard Resistance Range 1 K ohms to 1 M ohms Standard Resistance Tolerance±20 % Residual Resistance R500K ohms 0.1 % max. total resistance Environmental Characteristics Operating Temperature -10 °C to +70 °C Power Rati.
