PDB241-GTR, 24mm Guitar Potentiometer

datasheet Preview Page 1 from Datasheet4u.com

PDB241-GTR-BOURNS.pdf

PDB241-GTR Datasheet Preview — Preview of PDB241-GTR PDF

Datasheet Details

Part number:

PDB241-GTR

Manufacturer:

BOURNS

File Size:

448.45 KB

Description:

24mm Guitar Potentiometer

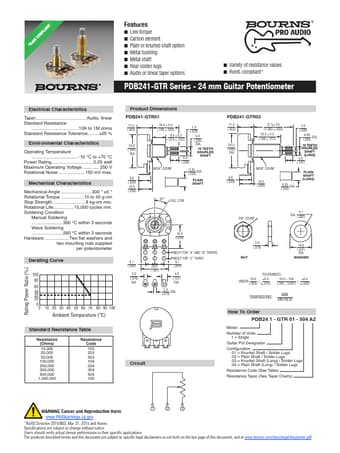

Features

* n Low torque n Carbon element n Plain or knurled shaft option n Metal bushing n Metal shaft n Rear solder lugs n Audio or linear taper options n Variety of resistance values n RoHS compliant
* PDB241-GTR Series - 24 mm Guitar Potentiometer 11.5 19.0 1.0 11.5 27.5 1.0 (.453) (.748) (.03

Applications

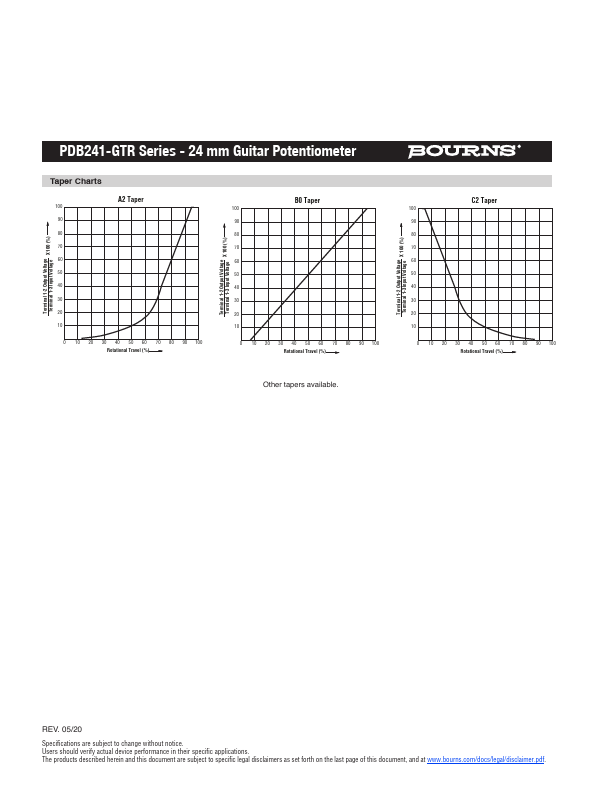

* The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www. bourns. com/docs/legal/disclaimer. pdf. X 100 (%) Terminal 1-2 Output Voltage Terminal 1-3 Input Voltage X 100 (%) Terminal 1-2 Output Voltage Term
