BP6911 Datasheet - BPS

600V Half-Bridge Pre-Driver

BP6911 Features

* Floating channel operation up to 600V

* Robust at negative transient voltage

* Gate drive supply range from 10V to 20V

* 3.3V, 5V and 15V input logic compatible

* UVLO for both high side and low side

* Built-in 100ns dead time

* Available in SOP8 package Applications

BP6911 General Description

The BP6911 is a high voltage, high speed half-bridge pre-driver for power MOSFET and IGBT. It has inputs for both high side and low side, and two output channels with internal dead time to avoid crossconduction. The input logic level is compatible with 3.3V/5V/15V signal. The floating high side chan.

BP6911 Datasheet (169.94 KB)

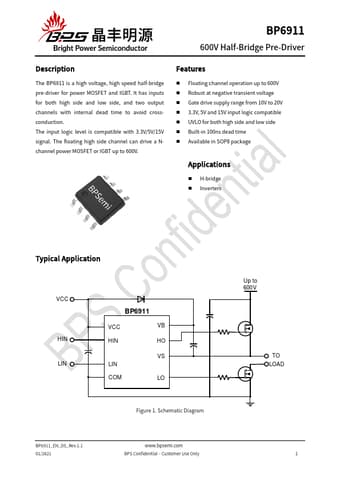

Preview of BP6911 PDF

Datasheet Details

Part number:

BP6911

Manufacturer:

BPS

File Size:

169.94 KB

Description:

600v half-bridge pre-driver.
