DAC7631

Serial Input/ 16-Bit/ Voltage Output DIGITAL-TO-ANALOG CONVERTER

DAC7631 Features

* q LOW POWER: 2.5mW q UNIPOLAR OR BIPOLAR OPERATION q SETTLING TIME: 10µs to 0.003% q 15-BIT LINEARITY AND MONOTONICITY:

* 40°C to +85°C q USER SELECTABLE RESET TO MID-SCALE OR ZERO-SCALE q SMALL SSOP-20 PACKAGE APPLICATIONS q ATE PIN ELECTRONICS q PROCESS CONTROL q CLOSED-LOOP SERVO-CONTROL

DAC7631 General Description

The DAC7631 is a serial input, 16-bit, voltage output Digital-to-Analog Converter (D/A) with guaranteed 15-bit monotonic performance over the

*40°C to +85°C temperature range. An asynchronous reset clears all registers to either mid-scale (8000H) or zero-scale (0000H), selectable via the RES.

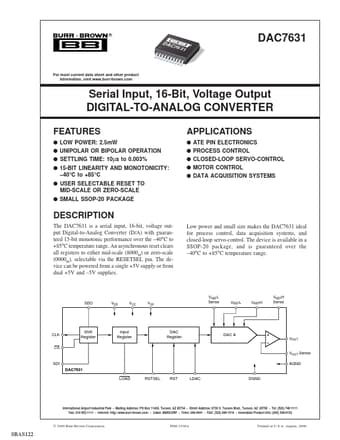

DAC7631 Datasheet (428.42 KB)

Preview of DAC7631 PDF

Datasheet Details

Part number:

DAC7631

Manufacturer:

Burr-Brown Corporation

File Size:

428.42 KB

Description:

Serial input/ 16-bit/ voltage output digital-to-analog converter.
® DAC DAC7631 763 ® 1 For most current data sheet and other product information, visit www.burr-brown.com Serial Input, 16-Bit, Voltage Output DI.
