NX7526BF-AA LASER DIODE

NX7526BF-AA Description

NEC's 1550 nm InGaAsP MQW FP PULSED LASER DIODE NX7526BF-AA IN COAXIAL PACKAGE FOR OTDR APPLICATION (95 mW MIN) .
NEC's NX7526BF-AA is a 1550 nm Multiple Quantum Well (MQW) structured Fabry-Perot (FP) laser diode coaxial module with single mode fiber.

NX7526BF-AA Features

* HIGH OUTPUT POWER: Pf = 95 mW MIN at IFP = 1000 mA Pulse Conditions: Pulse width (PW) = 10 µs, Duty = 1%

NX7526BF-AA Applications

* These NEC products are not intended for use in life support devices, appliances, or systems where the malfunction of these products can reasonably be expected to result in personal injury. The customers of CEL using or selling these products for use in such applications do so at their own risk and a

📥 Download Datasheet

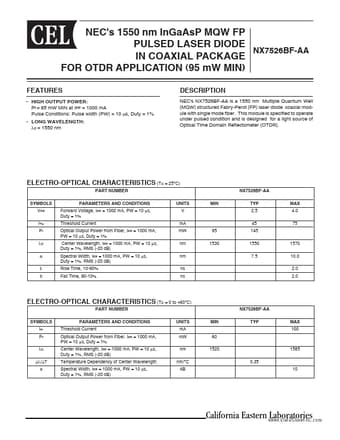

Preview of NX7526BF-AA PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NX7526BF-AA
Manufacturer
CEL
File Size
187.61 KB
Datasheet
NX7526BF-AA_CEL.pdf
Description
LASER DIODE
