NX7537BF-AA LASER DIODE

NX7537BF-AA Description

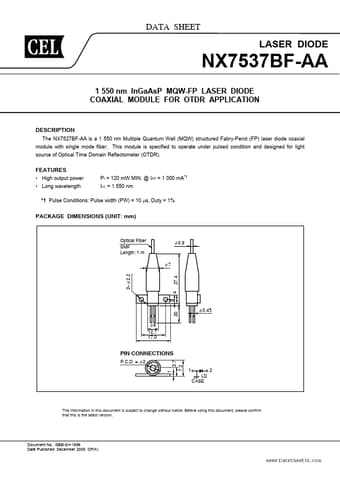

DATA SHEET LASER DIODE NX7537BF-AA 1 550 nm InGaAsP MQW-FP LASER DIODE COAXIAL MODULE FOR OTDR APPLICATION .
The NX7527BF-AA is a 1 550 nm Multiple Quantum Well (MQW) structured Fabry-Perot (FP) laser diode coaxial module with single mode fiber.

NX7537BF-AA Features

* High output power
* Long wavelength Pf = 120 mW MIN. @ IFP = 1 000 mA
* 1 λ C = 1 550 nm
* 1 Pulse Conditions: Pulse width (PW) = 10 µs, Duty = 1% PACKAGE DIMENSIONS (UNIT: mm) Optical Fiber SMF Length: 1 m φ 0.9 φ7 2
* φ 2.2 27.4 2 4 φ6 12.7 17.0 PIN CONNECTIONS
