PS2802-4, PS2802-1 - SOP PHOTOCOUPLER

CEL

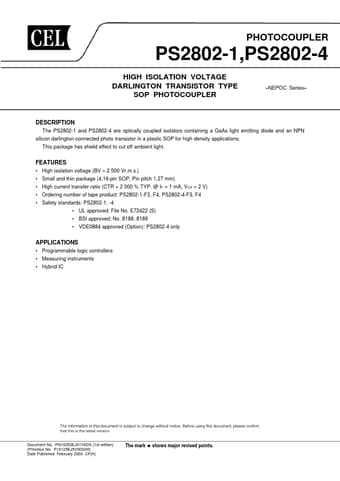

PS2802-4 Datasheet Preview — This datasheet PDF includes multiple part numbers: PS2802-4, PS2802-1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	PS2802-4, PS2802-1
Manufacturer	CEL
File Size	266.81 KB
Description	SOP PHOTOCOUPLER
Datasheet	PS2802-1_CEL.pdf
Note	This datasheet PDF includes multiple part numbers: PS2802-4, PS2802-1. Please refer to the document for exact specifications by model.

PS2802-4 Product details

Description

The PS2802-1 and PS2802-4 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon darlington-connected photo transistor in a plastic SOP for high density applications.

Features

High isolation voltage (BV = 2 500 Vr. m. s. ).
Small and thin package (4,16-pin SOP, Pin pitch 1.27 mm).
High current transfer ratio (CTR = 2 000 % TYP. @ IF = 1 mA, VCE = 2 V).
Ordering number of tape product: PS2802-1-F3, F4, PS2802-4-F3, F4.
Safety standards: PS2802-1, -4.
UL approved: File No. E72422 (S).
BSI approved: No. 8188, 8189.
VDE0884 approved (Option): PS2802-4 only.
