PS2801-4, PS2801-1 Datasheet - Renesas

PS2801-4 HIGH ISOLATION VOLTAGE SSOP PHOTOCOUPLER

PS2801-4 Features

* High isolation voltage (BV = 2 500 Vr.m.s.)

* Small and thin package (4,16-pin SSOP, Pin pitch 1.27 mm)

* High collector to emitter voltage (VCEO = 80 V)

* High-speed switching (tr = 3 s TYP., tf = 5 s TYP.)

* Ordering number of tape product: PS2801-1-F3, PS2801-4-F3

* Pb

PS2801-1-Renesas.pdf

This datasheet PDF includes multiple part numbers: PS2801-4, PS2801-1. Please refer to the document for exact specifications by model.

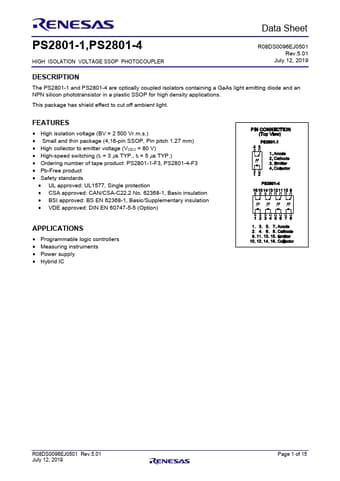

PS2801-4 Datasheet Preview Page 2 PS2801-4 Datasheet Preview Page 3
