PS2805-1 - HIGH ISOLATION VOLTAGE AC INPUT RESPONSE TYPE SOP PHOTOCOUPLER

NEC

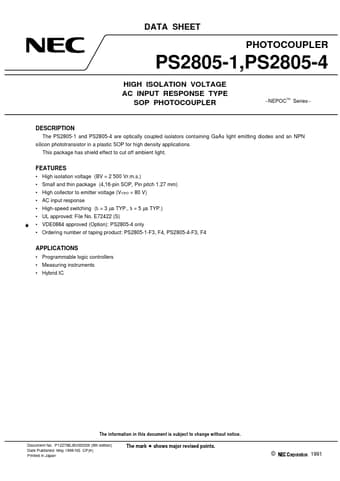

PS2805-1 Datasheet Preview — Preview of PS2805-1 PDF

Datasheet Details

Part number	PS2805-1
Manufacturer	NEC
File Size	135.61 KB
Description	HIGH ISOLATION VOLTAGE AC INPUT RESPONSE TYPE SOP PHOTOCOUPLER
Datasheet	PS2805-1_NEC.pdf

PS2805-1 Product details

Description

The PS2805-1 and PS2805-4 are optically coupled isolators containing GaAs light emitting diodes and an NPN silicon phototransistor in a plastic SOP for high density applications.

Features

High isolation voltage (BV = 2 500 Vr. m. s. ).
Small and thin package (4,16-pin SOP, Pin pitch 1.27 mm).
High collector to emitter voltage (VCEO = 80 V).
AC input response.
High-speed switching (tr = 3 µs TYP. , tf = 5 µs TYP. ).
UL approved: File No. E72422 (S).
VDE0884 approved (Option): PS2805-4 only.
Ordering number of taping product: PS2805-1-F3, F4, PS2805-4-F3, F4.
