PS2801C-4, PS2801C-1, HIGH ISOLATION VOLTAGE SSOP PHOTOCOUPLER

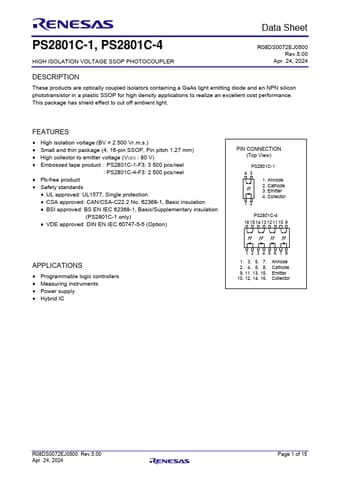

PS2801C-1, PS2801C-4 HIGH ISOLATION VOLTAGE SSOP PHOTOCOUPLER Data Sheet R08DS0072EJ0500 Rev.5.00 Apr.24, 2024 .
These products are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon phototransistor in a plastic SSOP for high de.

datasheet Preview Page 1 from Datasheet4u.com

PS2801C-1-Renesas.pdf

PS2801C-4 Datasheet Preview — This datasheet PDF includes multiple part numbers: PS2801C-4, PS2801C-1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PS2801C-4, PS2801C-1

Manufacturer:

Renesas ↗

File Size:

1.01 MB

Description:

HIGH ISOLATION VOLTAGE SSOP PHOTOCOUPLER

Note:

This datasheet PDF includes multiple part numbers: PS2801C-4, PS2801C-1.
Please refer to the document for exact specifications by model.

Features

* High isolation voltage (BV = 2 500 Vr. m. s. )
* Small and thin package (4, 16-pin SSOP, Pin pitch 1.27 mm)
* High collector to emitter voltage (VCEO : 80 V)
* Embossed tape product：PS2801C-1-F3: 3 500 pcs/reel : PS2801C-4-F3: 2 500 pcs/reel
* Pb-free product
