PS2805C-1 - SSOP PHOTOCOUPLER

Renesas

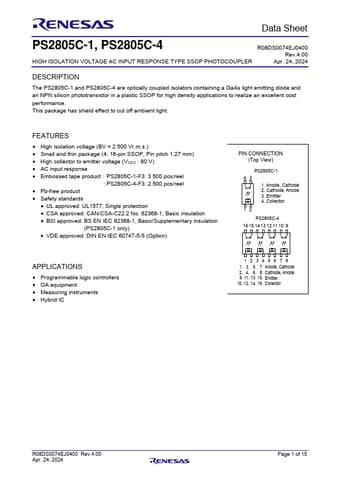

PS2805C-1 Datasheet Preview — Preview of PS2805C-1 PDF

Datasheet Details

Part number	PS2805C-1
Manufacturer	Renesas ↗
File Size	5.33 MB
Description	SSOP PHOTOCOUPLER
Datasheet	PS2805C-1-Renesas.pdf

PS2805C-1 Product details

Description

The PS2805C-1 and PS2805C-4 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon phototransistor in a plastic SSOP for high density applications to realize an excellent cost performance.

Features

High isolation voltage (BV = 2 500 Vr. m. s. ).
Small and thin package (4, 16-pin SSOP, Pin pitch 1.27 mm).
High collector to emitter voltage (VCEO : 80 V).
AC input response.
Embossed tape product：PS2805C-1-F3: 3 500 pcs/reel : PS2805C-4-F3: 2 500 pcs/reel.
Pb-free product.
Safety standards.
UL approved: UL1577, Single protection.
CSA approved: CAN/CSA-C22.2 No. 62368-1, Basic insulation.
BSI approved: BS EN.
