PS2805-4, HIGH ISOLATION VOLTAGE AC INPUT RESPONSE TYPE SOP PHOTOCOUPLER

DATA SHEET PHOTOCOUPLER PS2805-1,PS2805-4 HIGH ISOLATION VOLTAGE AC INPUT RESPONSE TYPE SOP PHOTOCOUPLER TM *NEPOC Series * DESCRIPT.
The PS2805-1 and PS2805-4 are optically coupled isolators containing GaAs light emitting diodes and an NPN silicon phototransistor in a plastic SOP fo.

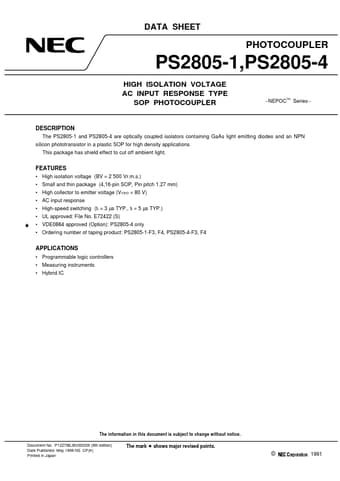

datasheet Preview Page 1 from Datasheet4u.com

PS2805-4_NEC.pdf

PS2805-4 Datasheet Preview — Preview of PS2805-4 PDF

Datasheet Details

Part number:

PS2805-4

Manufacturer:

NEC

File Size:

135.61 KB

Description:

HIGH ISOLATION VOLTAGE AC INPUT RESPONSE TYPE SOP PHOTOCOUPLER

Features

* High isolation voltage (BV = 2 500 Vr. m. s. )
* Small and thin package (4,16-pin SOP, Pin pitch 1.27 mm)
* High collector to emitter voltage (VCEO = 80 V)
* AC input response
* High-speed switching (tr = 3 µs TYP. , tf = 5 µs TYP. )
* UL approved: File N
