PS2801-1 - HIGH ISOLATION VOLTAGE SSOP PHOTOCOUPLER

Renesas

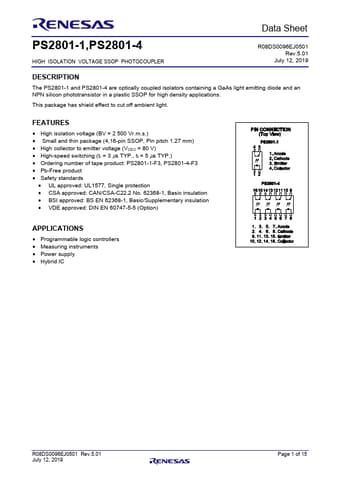

PS2801-1 Datasheet Preview — Preview of PS2801-1 PDF

Datasheet Details

Part number	PS2801-1
Manufacturer	Renesas ↗
File Size	970.49 KB
Description	HIGH ISOLATION VOLTAGE SSOP PHOTOCOUPLER
Datasheet	PS2801-1-Renesas.pdf

PS2801-1 Product details

Description

The PS2801-1 and PS2801-4 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon phototransistor in a plastic SSOP for high density applications.

Features

High isolation voltage (BV = 2 500 Vr. m. s. ).
Small and thin package (4,16-pin SSOP, Pin pitch 1.27 mm).
High collector to emitter voltage (VCEO = 80 V).
High-speed switching (tr = 3 s TYP. , tf = 5 s TYP. ).
Ordering number of tape product: PS2801-1-F3, PS2801-4-F3.
Pb-Free product.
Safety standards.
UL approved: UL1577, Single protection.
CSA approved: CAN/CSA-C22.2 No. 62368-1, Basic insulation.
BSI approved: BS EN 62368-1, Basic/Supplementary.
