PS2805A-1 - SSOP PHOTOCOUPLER

Renesas

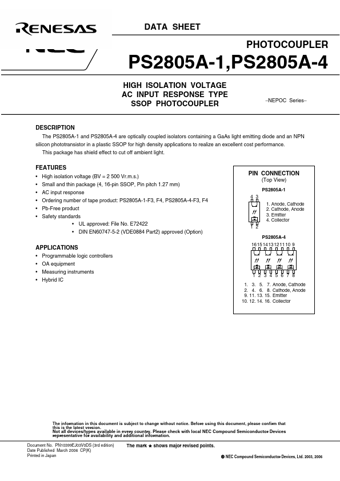

PS2805A-1 Datasheet Preview — Preview of PS2805A-1 PDF

Datasheet Details

Part number	PS2805A-1
Manufacturer	Renesas ↗
File Size	177.54 KB
Description	SSOP PHOTOCOUPLER
Datasheet	PS2805A-1-Renesas.pdf

PS2805A-1 Product details

Description

The PS2805A-1 and PS2805A-4 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon phototransistor in a plastic SSOP for high density applications to realize an excellent cost performance.

Features

High isolation voltage (BV = 2 500 Vr. m. s. ).
Small and thin package (4, 16-pin SSOP, Pin pitch 1.27 mm).
AC input response.
Ordering number of tape product: PS2805A-1-F3, F4, PS2805A-4-F3, F4.
Pb-Free product.
Safety standards.
UL approved: File No. E72422.
DIN EN60747-5-2 (VDE0884 Part2) approved (Option).
