PS2801C-4

AlGaAs infrared emitting diode

PS2801C-4 Features

* High isolation 3750 VRMS

* CTR flexibility available see order information

* DC input with transistor output

* Operating temperature range - 55 °C to 110 °C

* REACH compliance

* Halogen free

* MSL class 1 SCHEMATIC PIN DEFINITION 1,3,5,7 : Anode 2,4,6,8 : Cathode

PS2801C-4 General Description

The PS2801x-4 series combine an AlGaAs infrared emitting diode as the emitter which is optically coupled to a silicon planar phototransistor detector in a plastic SO16 package with different lead forming options. With the robust coplanar double mold structure, PS2801x-4 series provide the most stabl.

PS2801C-4 Datasheet (1.18 MB)

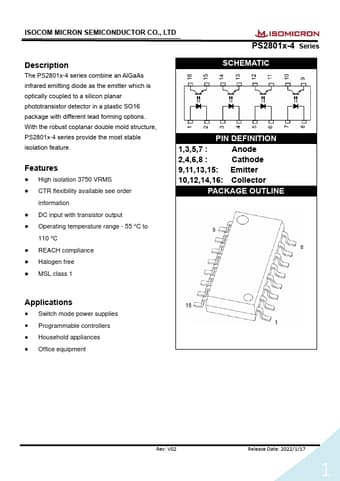

Preview of PS2801C-4 PDF

Datasheet Details

Part number:

PS2801C-4

Manufacturer:

ISOCOM MICRON

File Size:

1.18 MB

Description:

Algaas infrared emitting diode.
