UPG2012TB - L-BAND SPDT SWITCH

CEL

UPG2012TB Datasheet Preview — Preview of UPG2012TB PDF

Datasheet Details

Part number	UPG2012TB
Manufacturer	CEL
File Size	316.64 KB
Description	L-BAND SPDT SWITCH
Datasheet	UPG2012TB_CEL.pdf

UPG2012TB Product details

Description

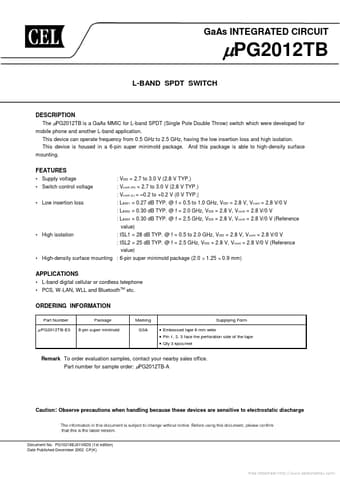

The PG2012TB is a GaAs MMIC for L-band SPDT (Single Pole Double Throw) switch which were developed for mobile phone and another L-band application.This device can operate frequency from 0.5 GHz to 2.5 GHz, having the low insertion loss and high isolation.This device is housed in a 6-pin super minimold package.And this package is able to high-density surface mounting.

Features

Supply voltage.
Switch control voltage.
Low insertion loss : VDD = 2.7 to 3.0 V (2.8 V TYP. ) : Vcont (H) = 2.7 to 3.0 V (2.8 V TYP. ) : Vcont (L) = 0.2 to +0.2 V (0 V TYP. ) : LINS1 = 0.27 dB TYP. @ f = 0.5 to 1.0 GHz, VDD = 2.8 V, Vcont = 2.8 V/0 V : LINS2 = 0.30 dB TYP. @ f = 2.0 GHz, VDD = 2.8 V, Vcont = 2.8 V/0 V : LINS3 = 0.30 dB TYP. @ f = 2.5 GHz, VDD = 2.8 V, Vcont = 2.8 V/0 V (Reference value).
High isolation : ISL1 = 28 dB TYP. @ f = 0.5 to 2.0 GHz,.
