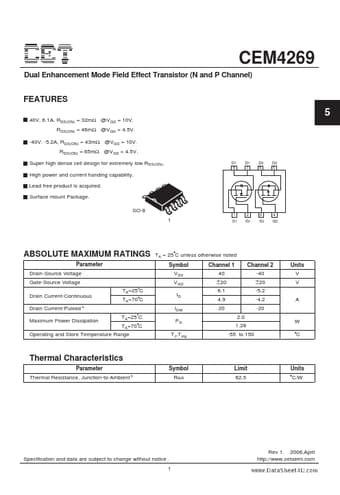

CEM4269 Datasheet, Transistor, CET

CEM4269 Features

• Transistor 40V, 6.1A, RDS(ON) = 32mΩ @VGS = 10V. RDS(ON) = 46mΩ @VGS = 4.5V. -40V, -5.2A, RDS(ON) = 43mΩ @VGS = 10V. RDS(ON) = 65mΩ @VGS = 4.5V. Super high dense cell design for extremely low RDS(

PDF File Details

Part number:

CEM4269

Manufacturer:

CET

File Size:

299.20kb

Download:

📄 Datasheet

Description:

Dual enhancement mode field effect transistor.
