CRTD045P03L2-G -30V -130A Trench P-MOSFET

CRTD045P03L2-G Description

.

CRTD045P03L2-G Features

* Uses CRM advanced Trench technology
* Extremely low on-resistance RDS(on)
* Excellent QgxRDS(on) product(FOM)

CRTD045P03L2-G Applications

* Motor control and drive
* Electrical tools
* Lithium battery protection CRTD045P03L2-G Trench P-MOSFET -30V, 3.6mΩ, -130A Product Summary VDS -30V RDS(on) typ. ID 3.6mΩ -130A 100% DVDS Tested 100% Avalanche Tested Package Marking and Ordering Information Part # CRT

📥 Download Datasheet

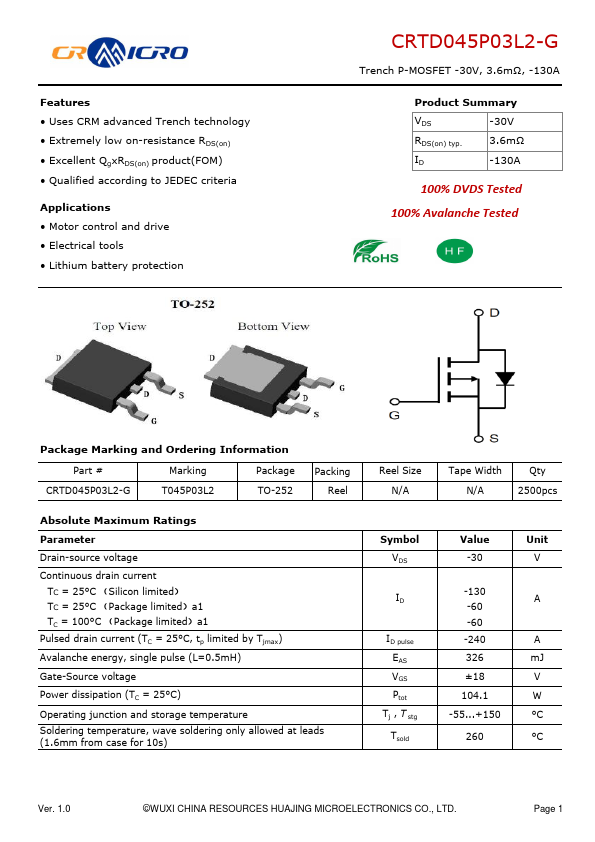

Preview of CRTD045P03L2-G PDF

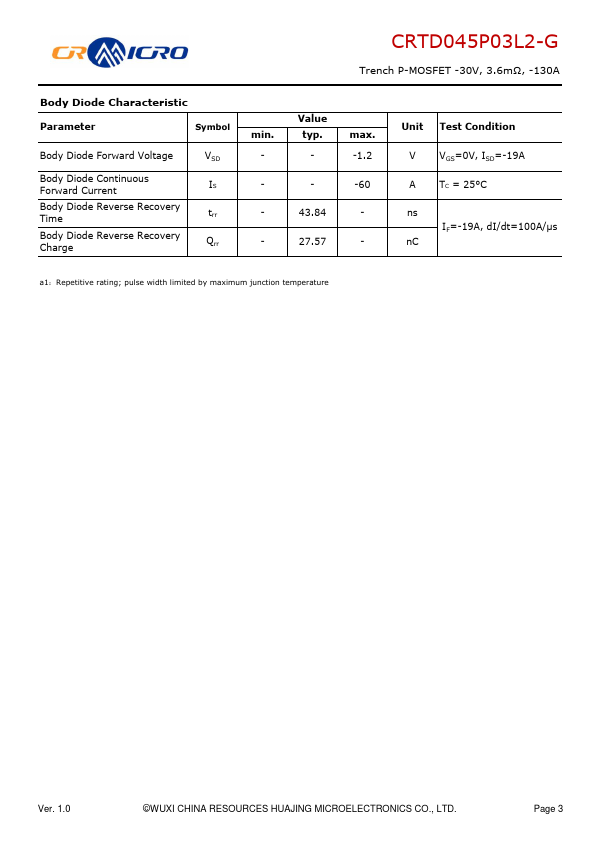

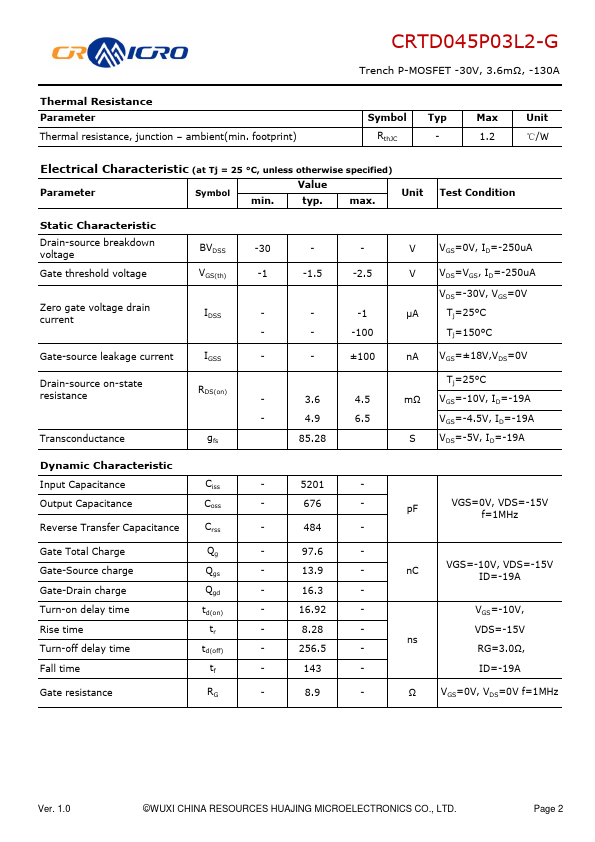

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CRTD045P03L2-G
Manufacturer
CR Micro
File Size
937.30 KB
Datasheet
CRTD045P03L2-G-CRMicro.pdf
Description
-30V -130A Trench P-MOSFET
