HGP028N04A Datasheet - CR Micro

Silicon N-Channel Power MOSFET

HGP028N04A Features

* l Fast Switching l Low ON Resistance(Rdson@10v≤2.8mΩ) l Low Gate Charge l Low Reverse transfer capacitances l 100% Single Pulse avalanche energy Test Applications： Power switch circuit of adaptor and charger. 40 V 150 A 90 A 96 W 2.2 mΩ Absolute（Tj= 25℃ unless otherwise specified） Symbol Par

HGP028N04A General Description

HGP028N04A, the silicon N-channel Enhanced VDMOSFETs, is obtained by the high density Trench technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. This device is VDSS ID（Silicon limited current） ID（Package limited） PD RDS(ON)Typ suitable for .

HGP028N04A Datasheet (400.47 KB)

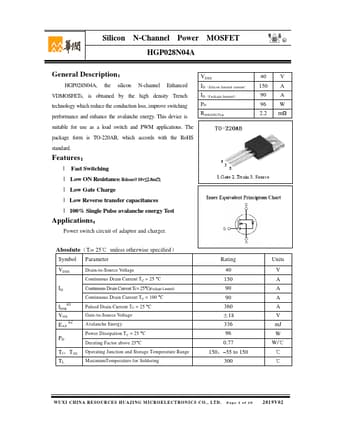

Preview of HGP028N04A PDF

Datasheet Details

Part number:

HGP028N04A

Manufacturer:

CR Micro

File Size:

400.47 KB

Description:

Silicon n-channel power mosfet.
