MTB095N10KRN3 100V N-Channel Enhancement Mode MOSFET

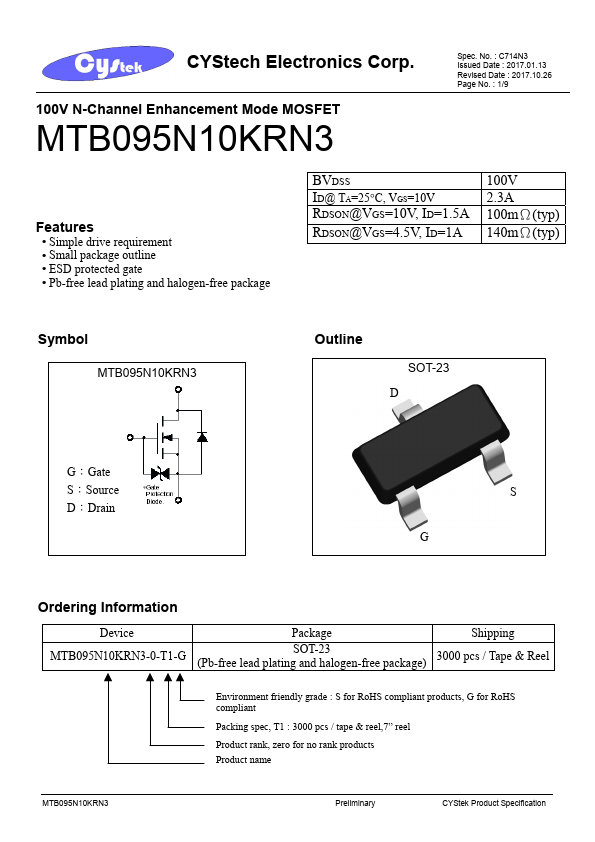

📥 Download Datasheet Datasheet Preview Page 1

Description

CYStech Electronics Corp.100V N-Channel Enhancement Mode MOSFET MTB095N10KRN3 Spec.No.: C714N3 Issued Date : 2017.01.13 Revised Date : 2017.10.26 .

📥 Download Datasheet

Preview of MTB095N10KRN3 PDF

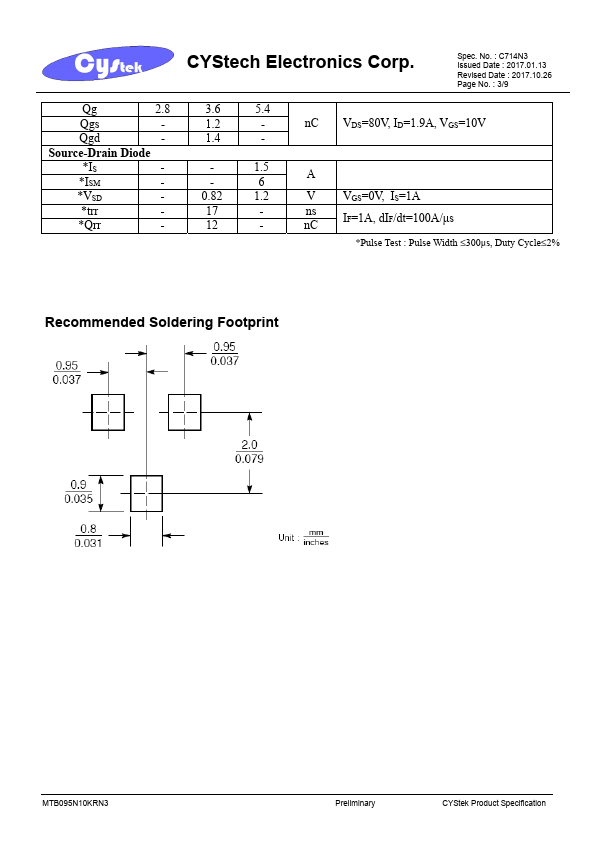

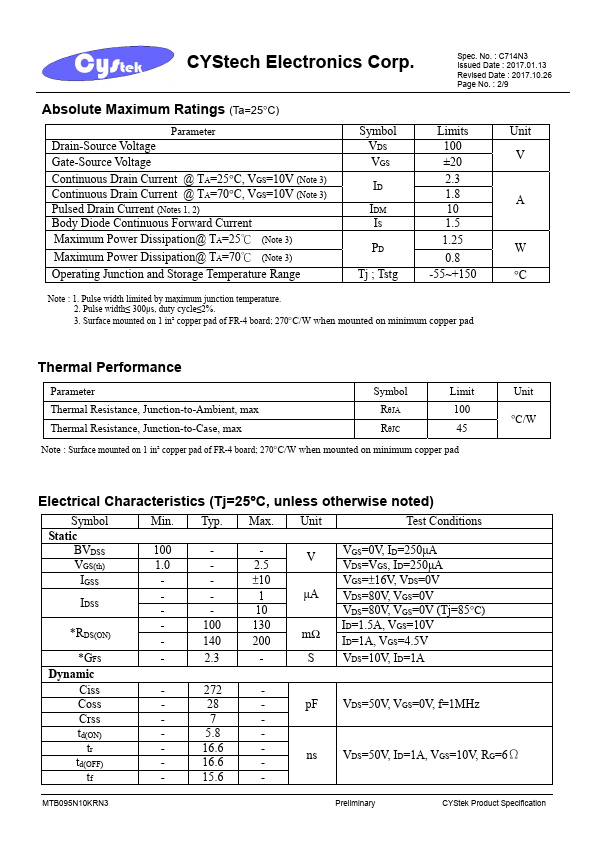

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MTB095N10KRN3
Manufacturer
CYStech Electronics
File Size
436.14 KB
Datasheet
MTB095N10KRN3-CYStechElectronics.pdf
Description
100V N-Channel Enhancement Mode MOSFET

Features

* Simple drive requirement
* Small package outline
* ESD protected gate
* Pb-free lead plating and halogen-free package BVDSS ID@ TA=25°C, VGS=10V RDSON@VGS=10V, ID=1.5A RDSON@VGS=4.5V, ID=1A 100V 2.3A 100mΩ(typ) 140mΩ(typ) Symbol MTB095N10KRN3 Outline SOT-23 D
