CAT28LV256 - 256K-Bit CMOS PARALLEL E2PROM

Product Overview

Catalyst Semiconductor

📥 Download Datasheet

CAT28LV256 256K-Bit CMOS PARALLEL E2PROM by Catalyst Semiconductor - Datasheet Preview — Datasheet preview – CAT28LV256

Datasheet Details

Part number	CAT28LV256
Manufacturer	Catalyst Semiconductor
File Size	344.27 KB
Description	256K-Bit CMOS PARALLEL E2PROM
Datasheet	CAT28LV256 Datasheet

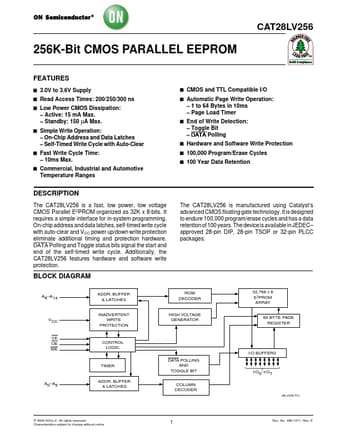

Additional preview pages of the CAT28LV256 datasheet.

Product details

Description

The CAT28LV256 is a fast, low power, low voltage CMOS Parallel E2PROM organized as 32K x 8-bits.

Features

s 3.0V to 3.6V Supply s Read Access Times: 200/250/300 ns s Low Power CMOS Dissipation:.
Active: 15 mA Max.
Standby: 150 µA Max. s Simple Write Operation:.
On-Chip Address and Data Latches.
Self-Timed Write Cycle with Auto-Clear s Fast Write Cycle Time:.
10ms Max. s Commercial, Industrial and Automotive Temperature Ranges s CMOS and TTL Compatible I/O s Automatic Page Write Operation:.
1 to 64 Bytes in 10ms.
Page Load Timer s End o.
