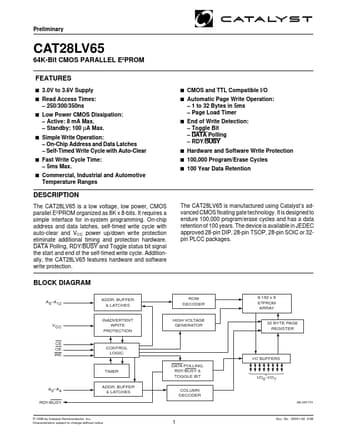

CAT28LV65 64K-Bit CMOS PARALLEL E2PROM

The CAT28LV65 is a low voltage, low power, CMOS parallel E2PROM organized as 8K x 8-bits. It requires a simple interface for in-system programming. On-chip address and data latches, self-timed write cycle with auto-clear and VCC power up/down write protection eliminate additional timing and protecti.

CAT28LV65 Features

* s 3.0V to 3.6V Supply s Read Access Times: s CMOS and TTL Compatible I/O s Automatic Page Write Operation:

* 250/300/350ns s Low Power CMOS Dissipation:

* 1 to 32 Bytes in 5ms

* Page Load Timer s End of Write Detection:

* Active: 8 mA Max.

* Standby: 100 µA
