CEM6056, CEM6056-Chino Datasheet - Chino-Excel Technology

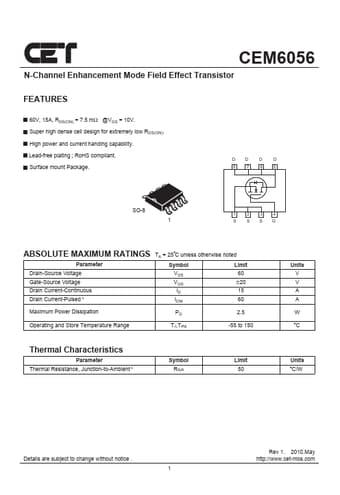

CEM6056 N-Channel Enhancement Mode Field Effect Transistor

CEM6056 Features

* 60V, 15A, RDS(ON) = 7.5 mΩ @VGS = 10V. Super high dense cell design for extremely low RDS(ON). High power and current handing capability. Lead-free plating ; RoHS compliant. Surface mount Package. DD D D 8 7 65 SO-8 1 1 234 S SSG ABSOLUTE MAXIMUM RATINGS TA = 25 C unless otherwise noted Parame

CEM6056-Chino-ExcelTechnology.pdf

This datasheet PDF includes multiple part numbers: CEM6056, CEM6056-Chino. Please refer to the document for exact specifications by model.
CEM6056 Datasheet Preview Page 2 CEM6056 Datasheet Preview Page 3

Datasheet Details

Part number:

CEM6056, CEM6056-Chino

Manufacturer:

Chino-Excel Technology

File Size:

464.66 KB

Description:

N-channel enhancement mode field effect transistor.

Note:

This datasheet PDF includes multiple part numbers: CEM6056, CEM6056-Chino.
Please refer to the document for exact specifications by model.
