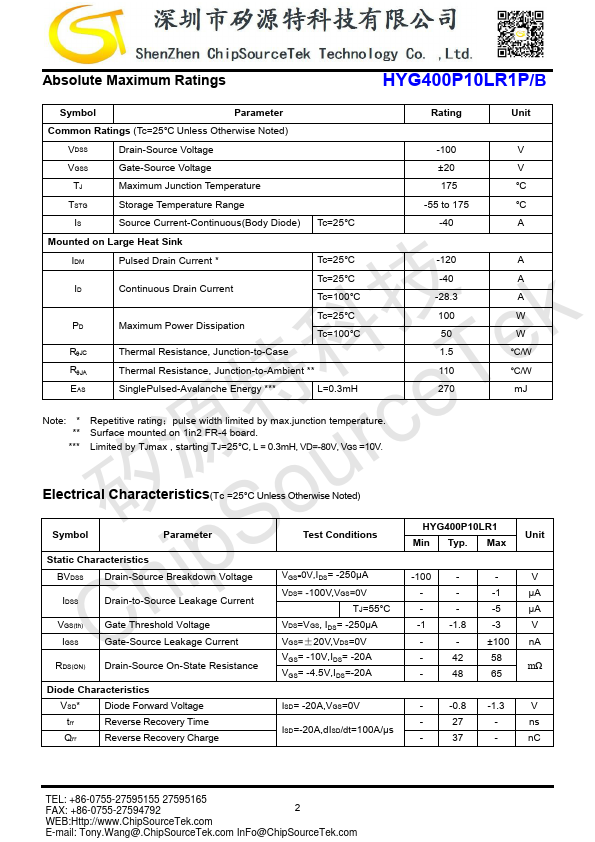

HYG400P10LR1B Datasheet Preview — This datasheet PDF includes multiple part numbers: HYG400P10LR1B, HYG400P10LR1P-ChipSourceTek. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	HYG400P10LR1B, HYG400P10LR1P-ChipSourceTek
Manufacturer	ChipSourceTek
File Size	1.37 MB
Description	P-Channel Enhancement Mode MOSFET
Datasheet	HYG400P10LR1P-ChipSourceTek_removed.pdf
Note	This datasheet PDF includes multiple part numbers: HYG400P10LR1B, HYG400P10LR1P-ChipSourceTek. Please refer to the document for exact specifications by model.

HYG400P10LR1B Product details

Description

-100V/-40A RDS(ON)= 42mΩ(typ.) @ VGS = -10V RDS(ON)= 48mΩ(typ.) @ VGS = -4.5V 100% Avalanche Tested Reliable and Rugged Lead Free and Green Devices Available (RoHS Compliant) TO-220FB-3L TO-263-2L ek Applications T Portable equipment and battery powered systems e DC-DC Converters Motor control.
