Datasheet Details
| Part number | HYG400N15NS1P |
|---|---|
| Manufacturer | HUAYI |
| File Size | 1.44 MB |
| Description | N-Channel Enhancement Mode MOSFET |
| Datasheet |
 HYG400N15NS1P-HUAYI.pdf
|
| Part number | HYG400N15NS1P |
|---|---|
| Manufacturer | HUAYI |
| File Size | 1.44 MB |
| Description | N-Channel Enhancement Mode MOSFET |
| Datasheet |
HYG400N15NS1P-HUAYI.pdf
|

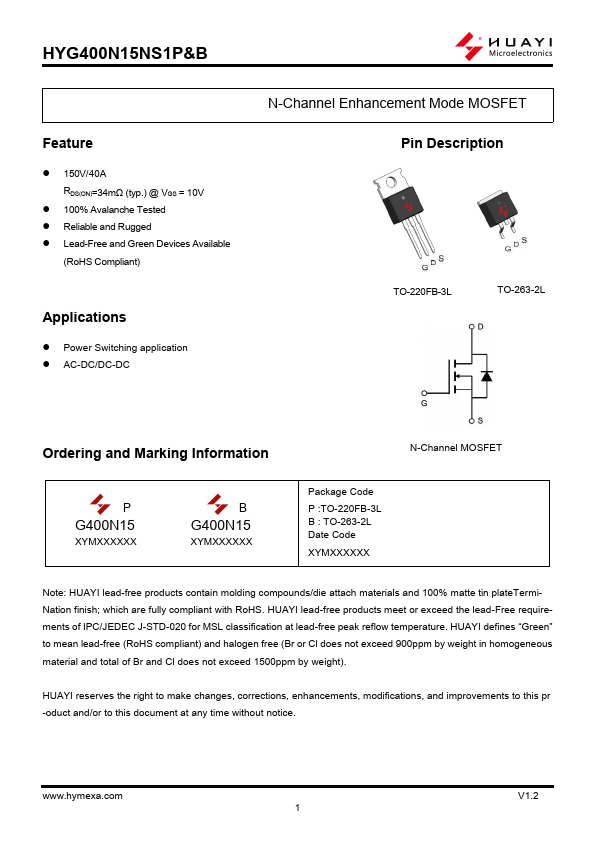

TO-220FB-3L TO-263-2L Ordering and Marking Information P G400N15 XYMXXXXXX B G400N15 XYMXXXXXX N-Channel MOSFET Package Code P :TO-220FB-3L B : TO-263-2L Date Code XYMXXXXXX Note: HUAYI lead-free products contain molding compounds/die attach materials and 100% matte tin plateTermiNation finish; which are fully compliant with RoHS.HUAYI lead-free products meet or exceed the lead-Free requirements of IPC/JEDEC J-STD-020 for MSL classification at lead-free peak reflow temperature.HUAYI def
