MX30P15 - P-Channel Enhancement Mode Power MOSFET

MX30P15 Description

P-Channel Enhancement Mode Power MOSFET .
The MX30P15 uses advanced trench technology to provide excellent RDS(ON), This device is suitable for use as a load switch or in PWM applicatinos.

MX30P15 Applications

* Load switch u Power management SOP-8 top view o Absolute Maximum Ratings (TA=25℃unless otherwise noted) S Drain-Source Voltage ip Gate-Source Voltage Parameter Symbol VDS VGS Limit -30 ±20 Unit V V Drain Current-Continuous Drain Current-Pulsed (Note 1) h Maximum Power Dissipation ID -15

📥 Download Datasheet

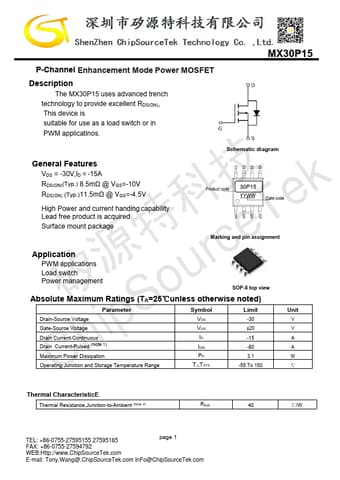

Preview of MX30P15 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MX30P15
Manufacturer
ChipSourceTek
File Size
1.46 MB
Datasheet
MX30P15-ChipSourceTek.pdf
Description
P-Channel Enhancement Mode Power MOSFET
