MXD30N80 - N-Channel Enhancement Mode Power MOSFET

MXD30N80 Description

N-Channel Enhancement Mode Power MOSFET .
The MXD30N80 uses advanced trench technology and design to provide excellent RDS(ON), with low gate charge .

MXD30N80 Features

* D
* VDS =30V，ID =80A
* RDS(ON)(Typ. )4.6mΩ @ Vgs=10V
* RDS(ON)(Typ. )6mΩ @ Vgs=4.5V Schematic diagram
* High density cell design for ultra low Rdson
* Fully characterized avalanche voltage and current
* Good stability and uniformity with high EAS k
* Excellent package

📥 Download Datasheet

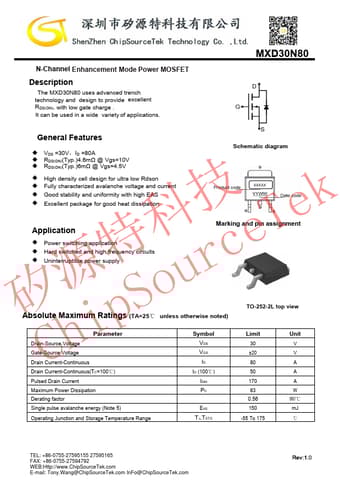

Preview of MXD30N80 PDF
