BSS50A - (BSS50A - BSS52A) SILICON PLANAR EPITAXIAL TRANSISTORS

📥 Download Datasheet

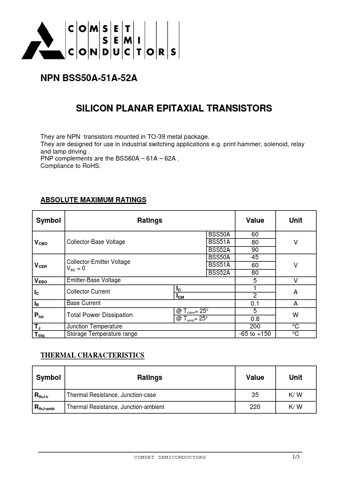

Datasheet preview – BSS50A

Datasheet Details

Part number BSS50A
Manufacturer Comset Semiconductors
File Size 120.32 KB
Description (BSS50A - BSS52A) SILICON PLANAR EPITAXIAL TRANSISTORS
Datasheet download datasheet BSS50A Datasheet
Additional preview pages of the BSS50A datasheet.

📁 Similar Datasheet

  • BSS50 - NPN Darlington transistors (NXP)
  • BSS50 - NPN SILICON DARLINGTON TRANSISTORS (Central Semiconductor)
  • BSS50 - DARLINGTON TRANSISTOR (Motorola)
  • BSS51 - NPN Darlington transistors (NXP)
  • BSS51 - NPN SILICON DARLINGTON TRANSISTORS (Central Semiconductor)
  • BSS51 - DARLINGTON TRANSISTOR (Motorola)
  • BSS52 - NPN Darlington transistors (NXP)
  • BSS52 - NPN SILICON DARLINGTON TRANSISTORS (Central Semiconductor)
  • BSS52 - DARLINGTON TRANSISTOR (Motorola)
  • BSS100 - SIPMOS Small-Signal Transistor (Siemens Semiconductor Group)
Other Datasheets by Comset Semiconductors
  • BSS51A - (BSS50A - BSS52A) SILICON PLANAR EPITAXIAL TRANSISTORS
  • BSS52A - (BSS50A - BSS52A) SILICON PLANAR EPITAXIAL TRANSISTORS
  • BSS60A - (BSS60A - BSS62A) SILICON PLANAR EPITAXIAL TRANSISTORS
  • BSS61A - (BSS60A - BSS62A) SILICON PLANAR EPITAXIAL TRANSISTORS
  • BSS62A - (BSS60A - BSS62A) SILICON PLANAR EPITAXIAL TRANSISTORS

Full PDF Text Transcription

Click to expand full text
NPN BSS50A-51A-52A SILICON PLANAR EPITAXIAL TRANSISTORS They are NPN transistors mounted in TO-39 metal package. They are designed for use in industrial switching applications e.g. print hammer, solenoid, relay and lamp driving . PNP complements are the BSS60A – 61A – 62A . Compliance to RoHS. ABSOLUTE MAXIMUM RATINGS Symbol VCBO Collector-Base Voltage www.DataSheet.net/ Ratings BSS50A BSS51A BSS52A BSS50A BSS51A BSS52A Value 60 80 90 45 60 80 5 1 2 0.1 5 0.
