BSS52A - (BSS50A - BSS52A) SILICON PLANAR EPITAXIAL TRANSISTORS

This page provides the datasheet information for the BSS52A, a member of the BSS50A (BSS50A - BSS52A) SILICON PLANAR EPITAXIAL TRANSISTORS family.

Comset Semiconductors

📥 Download Datasheet

Datasheet Details

Part number	BSS52A
Manufacturer	Comset Semiconductors
File Size	120.32 KB
Description	(BSS50A - BSS52A) SILICON PLANAR EPITAXIAL TRANSISTORS
Datasheet	BSS52A Datasheet
Additional preview pages of the BSS52A datasheet.

📁 Similar Datasheet

BSS52 - NPN Darlington transistors (NXP)
BSS52 - NPN SILICON DARLINGTON TRANSISTORS (Central Semiconductor)
BSS52 - DARLINGTON TRANSISTOR (Motorola)
BSS50 - NPN Darlington transistors (NXP)
BSS50 - NPN SILICON DARLINGTON TRANSISTORS (Central Semiconductor)
BSS50 - DARLINGTON TRANSISTOR (Motorola)
BSS51 - NPN Darlington transistors (NXP)
BSS51 - NPN SILICON DARLINGTON TRANSISTORS (Central Semiconductor)
BSS51 - DARLINGTON TRANSISTOR (Motorola)
BSS100 - SIPMOS Small-Signal Transistor (Siemens Semiconductor Group)

Other Datasheets by Comset Semiconductors

BSS50A - (BSS50A - BSS52A) SILICON PLANAR EPITAXIAL TRANSISTORS
BSS51A - (BSS50A - BSS52A) SILICON PLANAR EPITAXIAL TRANSISTORS
BSS60A - (BSS60A - BSS62A) SILICON PLANAR EPITAXIAL TRANSISTORS
BSS61A - (BSS60A - BSS62A) SILICON PLANAR EPITAXIAL TRANSISTORS
BSS62A - (BSS60A - BSS62A) SILICON PLANAR EPITAXIAL TRANSISTORS

Full PDF Text Transcription

Click to expand full text

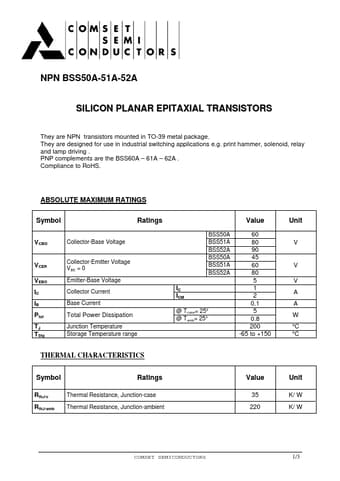

NPN BSS50A-51A-52A SILICON PLANAR EPITAXIAL TRANSISTORS They are NPN transistors mounted in TO-39 metal package. They are designed for use in industrial switching applications e.g. print hammer, solenoid, relay and lamp driving . PNP complements are the BSS60A – 61A – 62A . Compliance to RoHS. ABSOLUTE MAXIMUM RATINGS Symbol VCBO Collector-Base Voltage www.DataSheet.net/ Ratings BSS50A BSS51A BSS52A BSS50A BSS51A BSS52A Value 60 80 90 45 60 80 5 1 2 0.1 5 0.
