BSS52 - NPN Darlington transistors

Datasheet Summary

Description

DESCRIPTION NPN Darlington transistor in a TO-39 metal package.

PNP complements: BSS61 and BSS62.

Fig.1 Simplified outline (TO-39) and symbol.

Features

  • High current (max. 1 A).
  • Low voltage (max. 80 V).
  • Integrated diode and resistor.

📥 Download Datasheet

Datasheet preview – BSS52

Datasheet Details

Part number BSS52
Manufacturer NXP
File Size 52.23 KB
Description NPN Darlington transistors
Datasheet download datasheet BSS52 Datasheet
Additional preview pages of the BSS52 datasheet.

📁 Similar Datasheet

  • BSS52 - NPN SILICON DARLINGTON TRANSISTORS (Central Semiconductor)
  • BSS52 - DARLINGTON TRANSISTOR (Motorola)
  • BSS52A - (BSS50A - BSS52A) SILICON PLANAR EPITAXIAL TRANSISTORS (Comset Semiconductors)
  • BSS50 - NPN SILICON DARLINGTON TRANSISTORS (Central Semiconductor)
  • BSS50 - DARLINGTON TRANSISTOR (Motorola)
  • BSS50A - (BSS50A - BSS52A) SILICON PLANAR EPITAXIAL TRANSISTORS (Comset Semiconductors)
  • BSS51 - NPN SILICON DARLINGTON TRANSISTORS (Central Semiconductor)
  • BSS51 - DARLINGTON TRANSISTOR (Motorola)
  • BSS51A - (BSS50A - BSS52A) SILICON PLANAR EPITAXIAL TRANSISTORS (Comset Semiconductors)
  • BSS100 - SIPMOS Small-Signal Transistor (Siemens Semiconductor Group)
Other Datasheets by NXP
  • BSS50 - NPN Darlington transistors
  • BSS51 - NPN Darlington transistors
  • BSS110 - P-channel enhancement mode vertical D-MOS transistor
  • BSS123 - N-channel transistor Logic level FET
  • BSS138AKA - single N-channel MOSFET
  • BSS138BK - N-channel MOSFET
  • BSS138BKW - 320mA N-channel Trench MOSFET
  • BSS192 - P-channel enhancement mode vertical D-MOS transistor

Full PDF Text Transcription

Click to expand full text

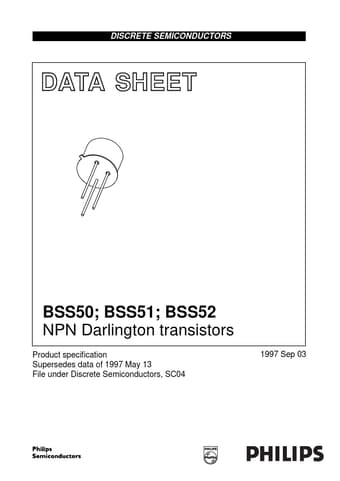

DISCRETE SEMICONDUCTORS DATA SHEET M3D111 BSS50; BSS51; BSS52 NPN Darlington transistors Product specification Supersedes data of 1997 May 13 File under Discrete Semiconductors, SC04 1997 Sep 03 Philips Semiconductors Product specification NPN Darlington transistors FEATURES • High current (max. 1 A) • Low voltage (max. 80 V) • Integrated diode and resistor. APPLICATIONS • Industrial high gain amplification. handbook, halfpage 1 BSS50; BSS51; BSS52 PINNING PIN 1 2 3 emitter base collector, connected to case DESCRIPTION DESCRIPTION NPN Darlington transistor in a TO-39 metal package. PNP complements: BSS61 and BSS62. 3 2 2 3 MAM311 1 Fig.1 Simplified outline (TO-39) and symbol.
