CY25560 - Spread Spectrum Clock Generator

Cypress Semiconductor

The CY25560 by Cypress Semiconductor is a Spread Spectrum Clock Generator. Below is the official datasheet preview.

📥 Download Datasheet

CY25560 Spread Spectrum Clock Generator by Cypress Semiconductor - Datasheet Preview — Official preview page of the **CY25560** Spread Spectrum Clock Generator datasheet (Cypress Semiconductor).

Datasheet Details

Part number	CY25560
Manufacturer	Cypress Semiconductor
File Size	413.42 KB
Description	Spread Spectrum Clock Generator
Datasheet	CY25560_CypressSemiconductor.pdf

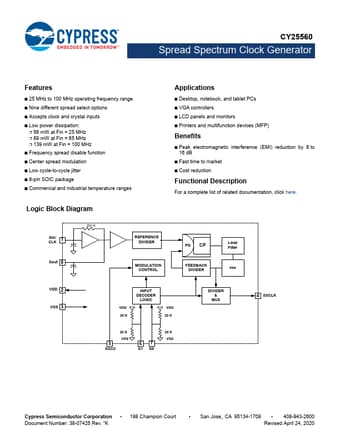

Additional preview pages of the CY25560 datasheet.

CY25560 Product details

Description

For a complete list of related documentation, click here. 198 Champion Court Document Number: 38-07425 Rev. K San Jose, CA 95134-1709 408-943-2600 Revised April 24, 2020 CY25560 Contents Pinouts 3 Pin Des

Features

25 MHz to 100 MHz operating frequency range.
Nine different spread select options.
Accepts clock and crystal inputs.
Low power dissipation:.
56 mW at Fin = 25 MHz.
89 mW at Fin = 65 MHz.
139 mW at Fin = 100 MHz.
Frequency spread disable function.
Center spread modulation.
Low cycle-to-cycle jitter.
8-pin SOIC package.
Commercial and industrial temperature ranges Logic Block Diagram.
